One of the biggest weak points on the Honda GX690 especially on BE skids is the factory fuse holder.
It overheats, melts the harness, and the tiny micro fuse inside pops early. We’ve seen it happen anywhere from 26 hours to 50, 75, and 100 hours. Different machines, different grounding setups (no ground, battery-to-machine, machine-to-battery + frame ground), all under normal operating conditions. Same failure.
We haven’t isolated the exact root cause beyond the voltage regulator possibly dumping voltage into the harness, but the result is consistent: the factory holder fails.
Symptoms:
- Random hard shutoffs
- Water, battery voltage, fuel, and oil level all look fine
- Turn the key off, then back on → no hours displayed and no fuel solenoid click behind the “GX690” area
That’s your confirmation. It’s the fuse behind the key switch.
Why the factory setup is a problem: The cover is plastic and sits directly behind the key switch. Access requires a stubby Phillips screwdriver. You have to remove the screw, unplug the wire on the back, then fight the plastic retainer just to get to a fuse that will likely fail again. Field repairs on this setup are a nightmare.
The permanent fix: Replace the factory holder with an external fuse holder and a larger-style fuse. If it ever blows again, you can change it in seconds instead of tearing the control panel apart.
Tools needed:

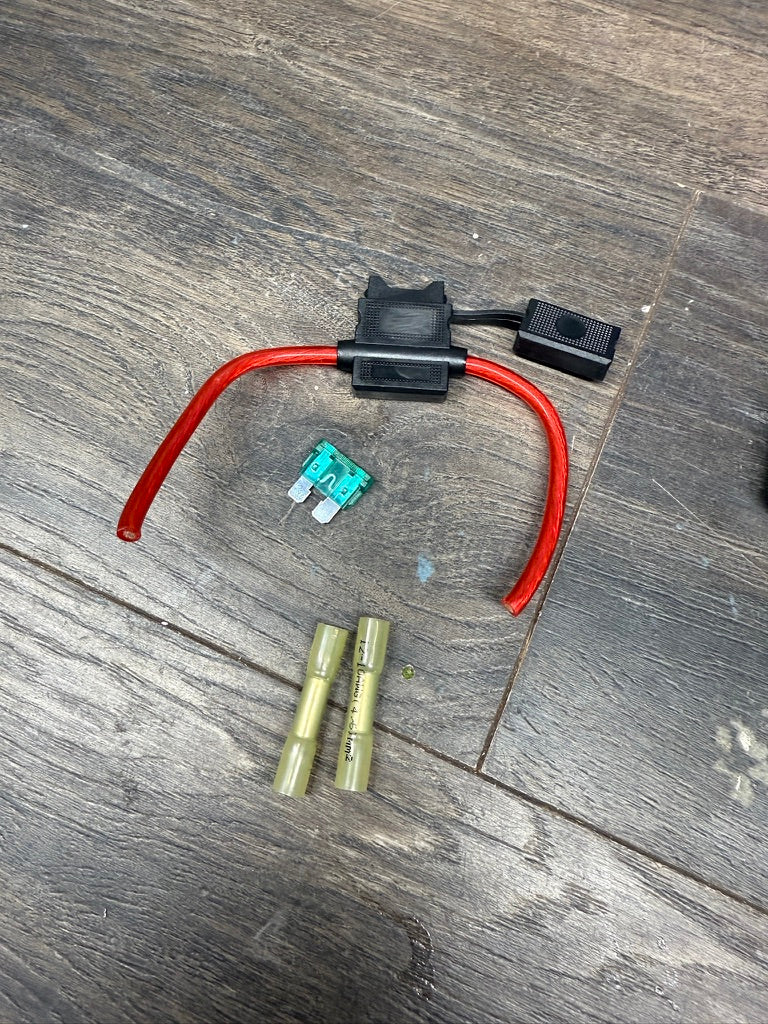

- Our fuse bypass kit https://overkillwash.com/products/gx690-key-switch-fuse-relocation-mod?_pos=1&_sid=558b60eb3&_ss=r
- Stubby Phillips screwdriver or ratchet attachment
- Wire cutters / dykes
- Wire strippers
- Wire crimp tool
Process:
- Turn power off and disconnect the positive battery terminal.
- Access the factory fuse holder. Easiest method: leave the plastic cover on, poke the retainer with a pick so the holder slides free, then carefully work it out.
- Snip the two white wires as close to the old fuse holder as possible.
- Strip both wires.
- Use 10-gauge thermal insulated butt connectors to attach the new 10-gauge fuse holder harness.
- Crimp solidly, then heat-shrink with a torch or heat gun.
- Zip-tie the wiring cleanly out of the way.
- Install a 30-amp fuse.
- For extra protection, add dielectric grease in the fuse slots.
- Reconnect the battery, turn the key to the ON position. You should immediately see the hours and hear the fuel solenoid click.
You’re back up and running with a setup that is actually serviceable in the field.
If you’re already in there replacing a blown fuse, do the permanent fix the first time. It takes a few extra minutes and eliminates the recurring headache.
