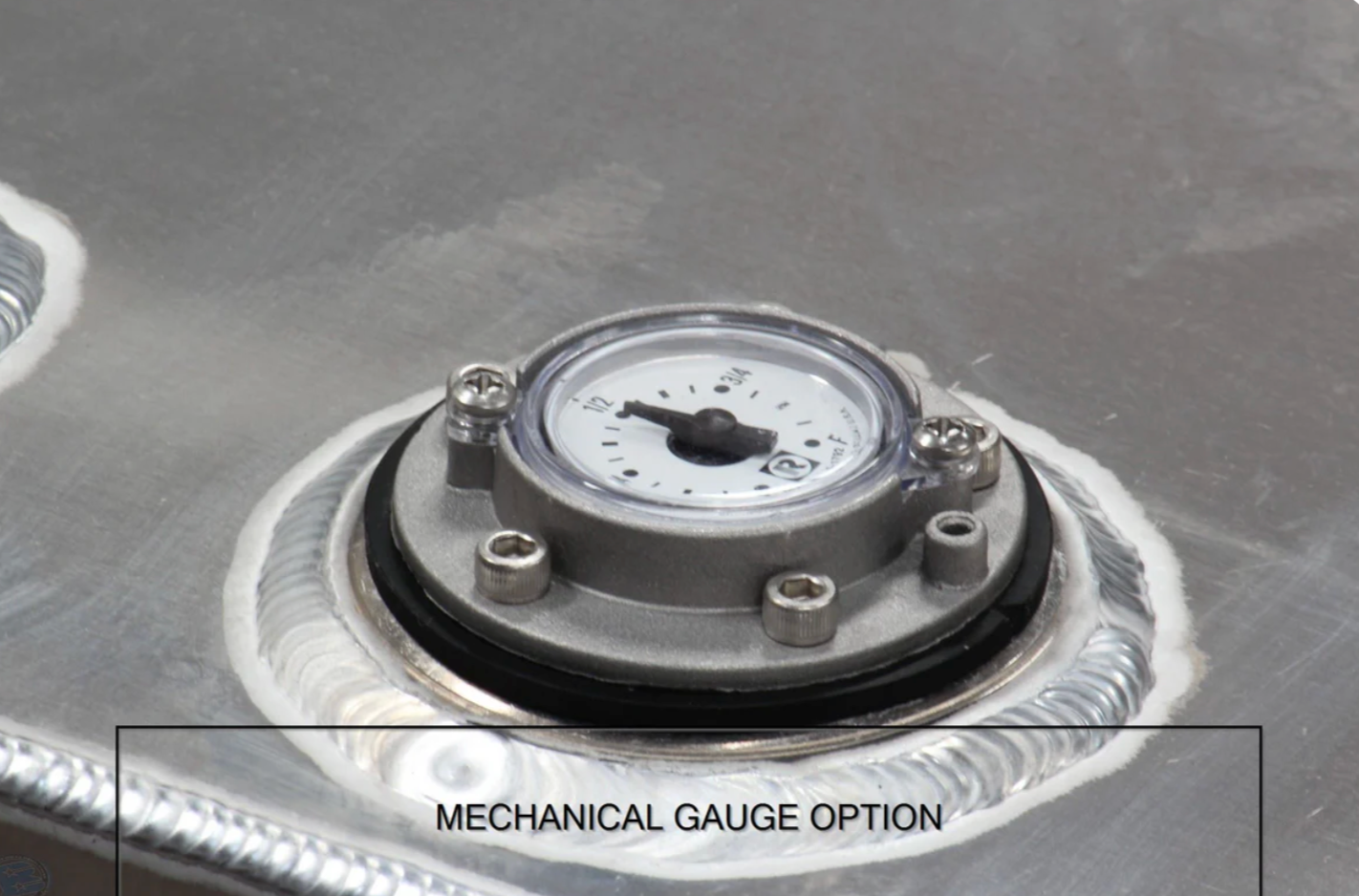

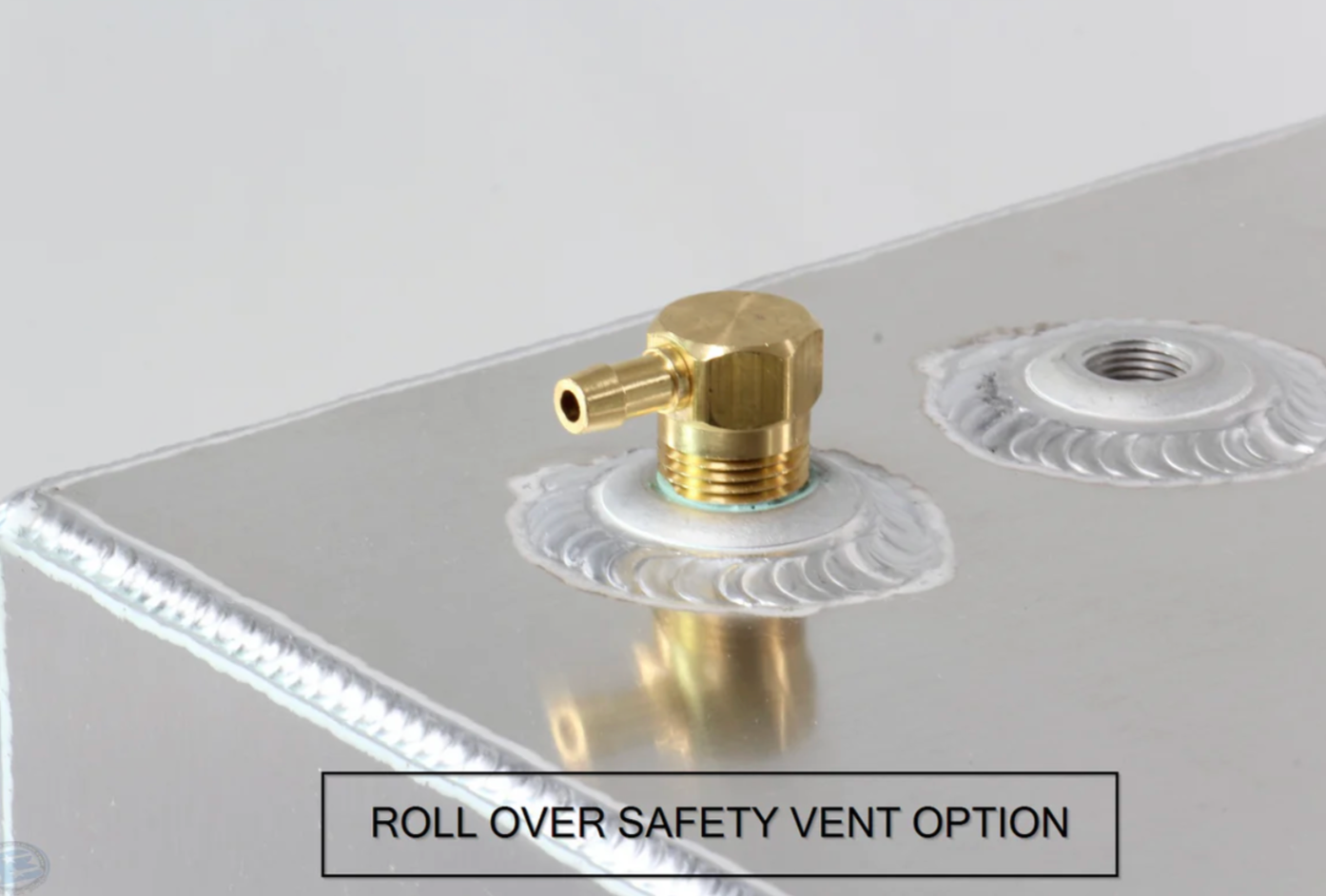

BASE PRICING FOR THIS TANK COMES WITH: TANK ONLY!!!! NO LID, NO ROLL OVER VALVE, 1 DROP TUBE, 1 RETURN NO SENDING UNIT / GAUGE.

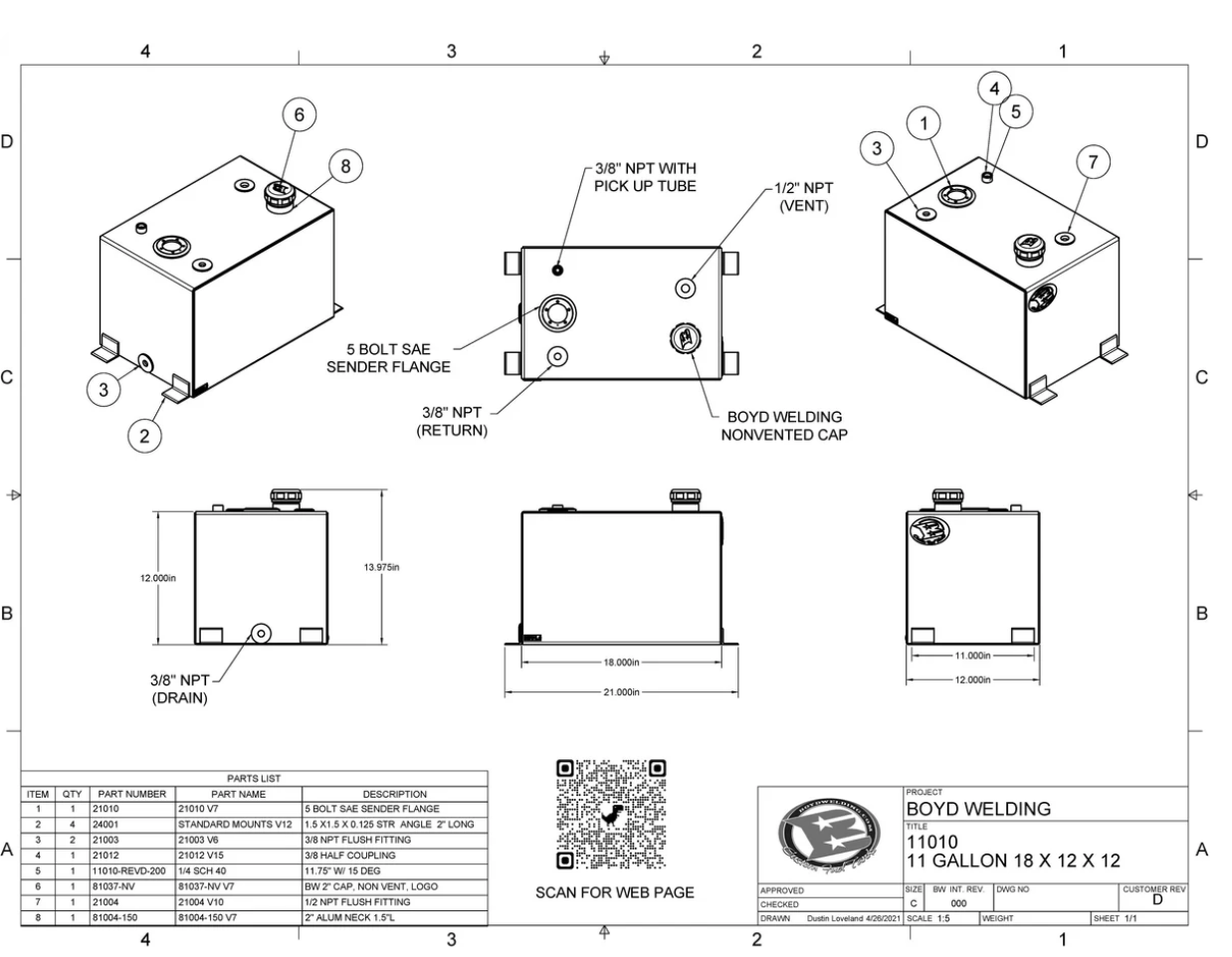

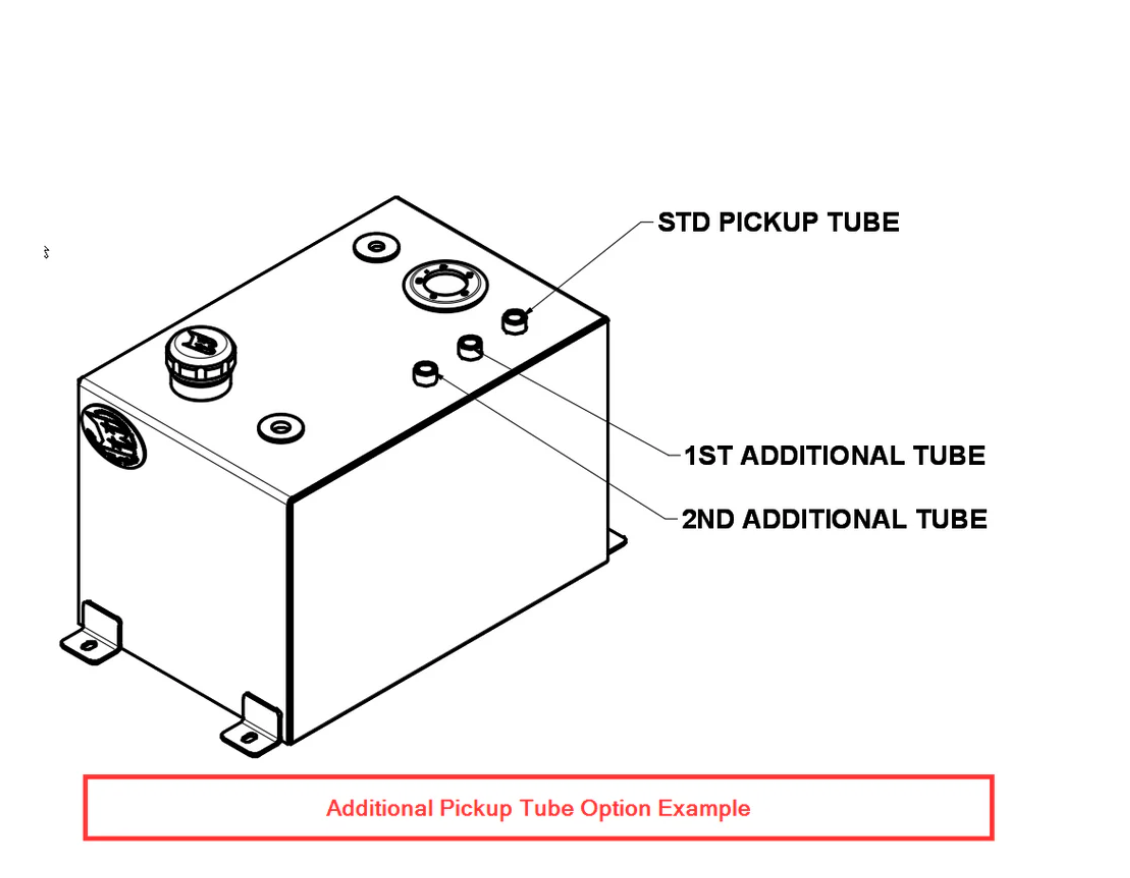

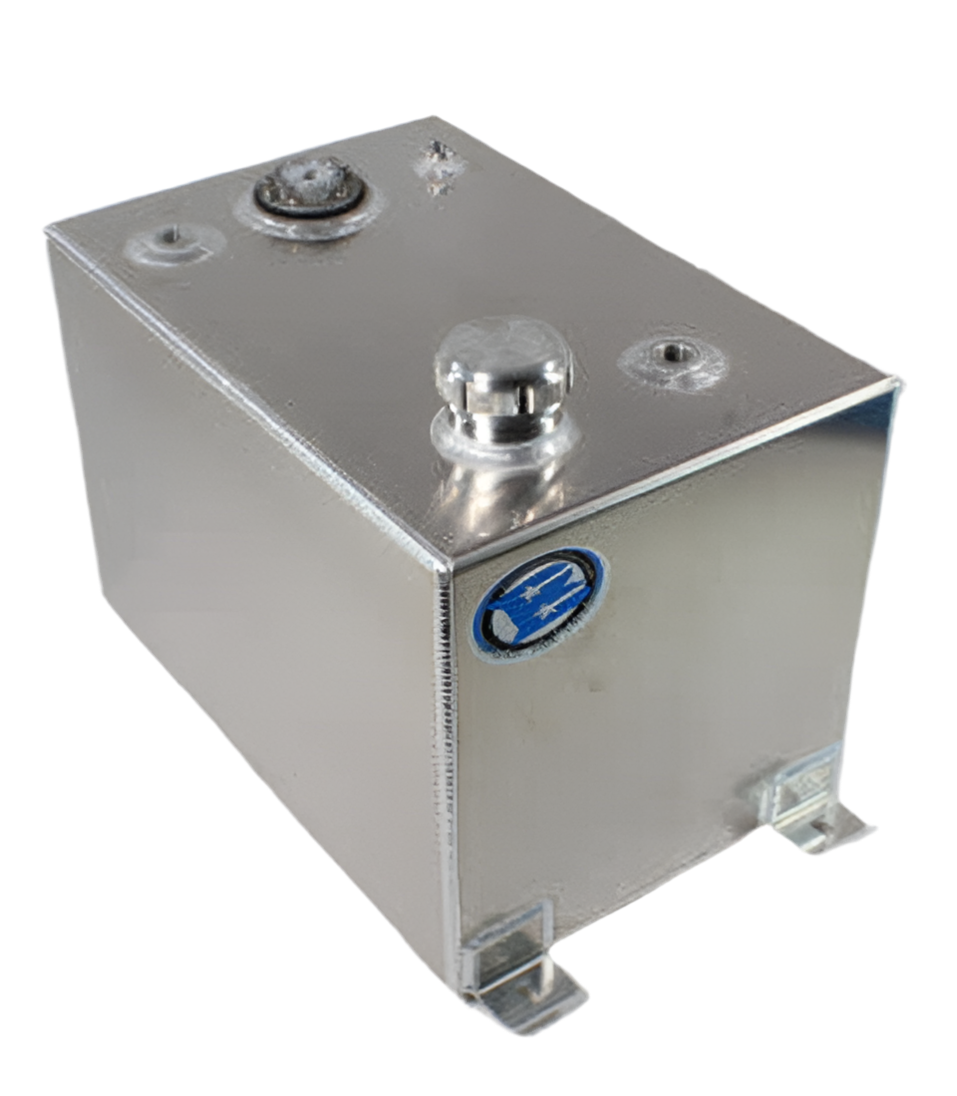

Constructed from 1/8" thick 5052 mill aluminum, this 11-gallon tank measures 18" long, 12" wide, and 12" high, with a 21" x 12" footprint and overall height of 14" including the fill cap. It includes one 3/8" NPT pickup tube standard, with the option to add more for tailored fuel delivery. Venting is provided via a 1/2" NPT port, and 3/8" NPT fittings are incorporated for draw, return, and drain functions. A sending unit flange is included, and four mounting tabs (1.5" x 2" long) ensure secure installation. Threaded fittings, plugs, and hardware are required separately to complete the setup.
Tank Dimensions: 18"L x 12"W x 12"H
Tank Footprint:21" x 12"
Tank Overall Height W/CAP:14" Tank Thickness: 1/8" Material Grade: 5052 Mill Aluminum Approx Weight: 17 lbs Tank Baffles:no

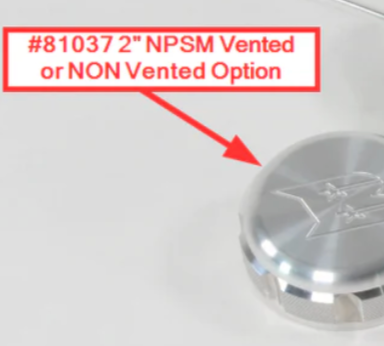

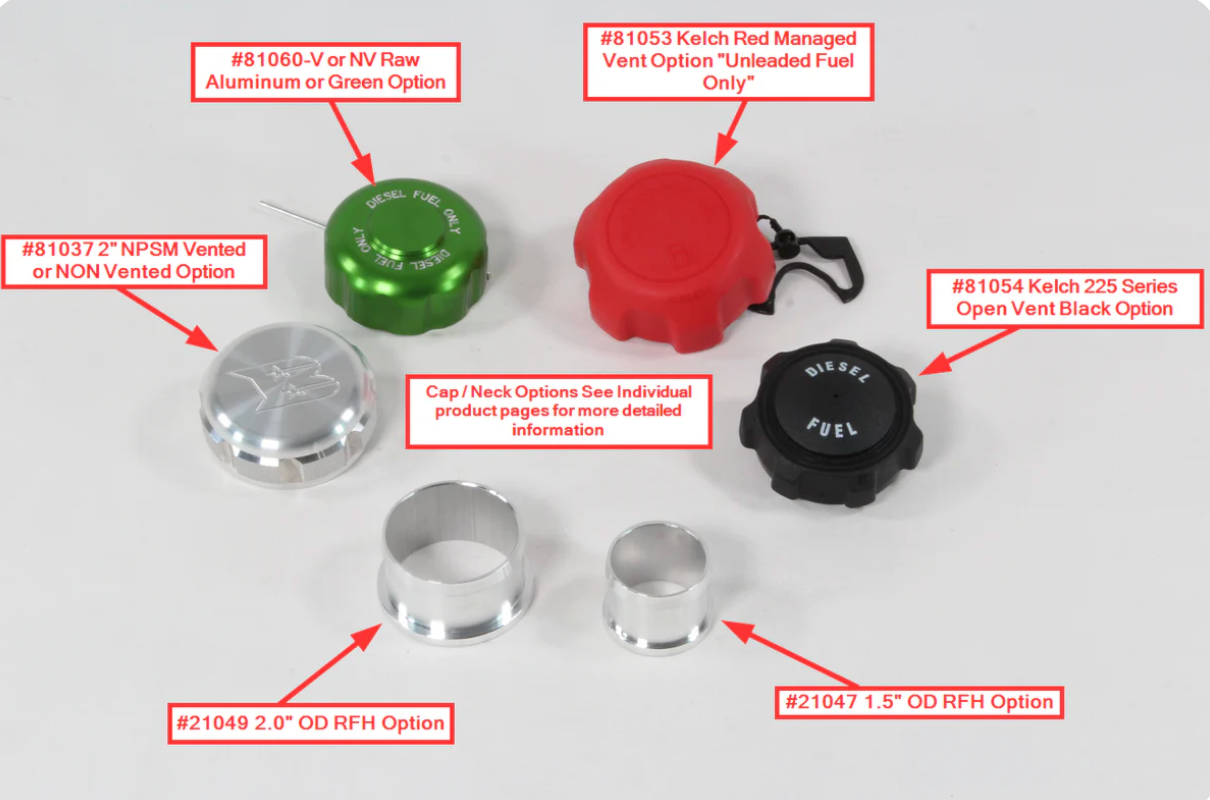

Fill Cap: BASED ON SELECTION Vent: 1/2" NPT Draw:3/8" NPT Pickup Tube Return: 3/8" NPT Drain: 3/8" NPT Sending Unit Flange: Yes Mounting Tabs: (4) 1.5 x 2" Long
