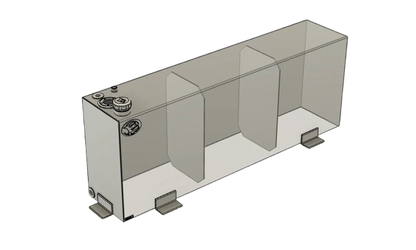

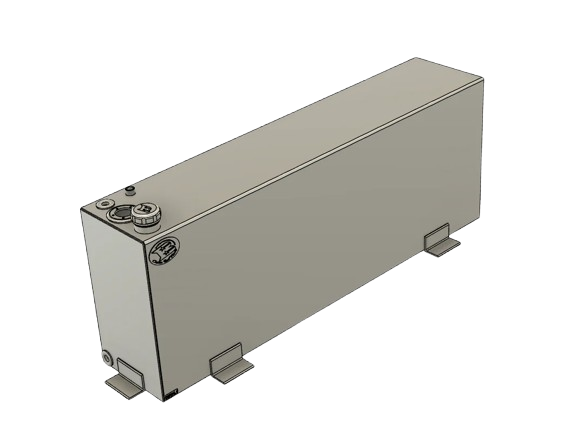

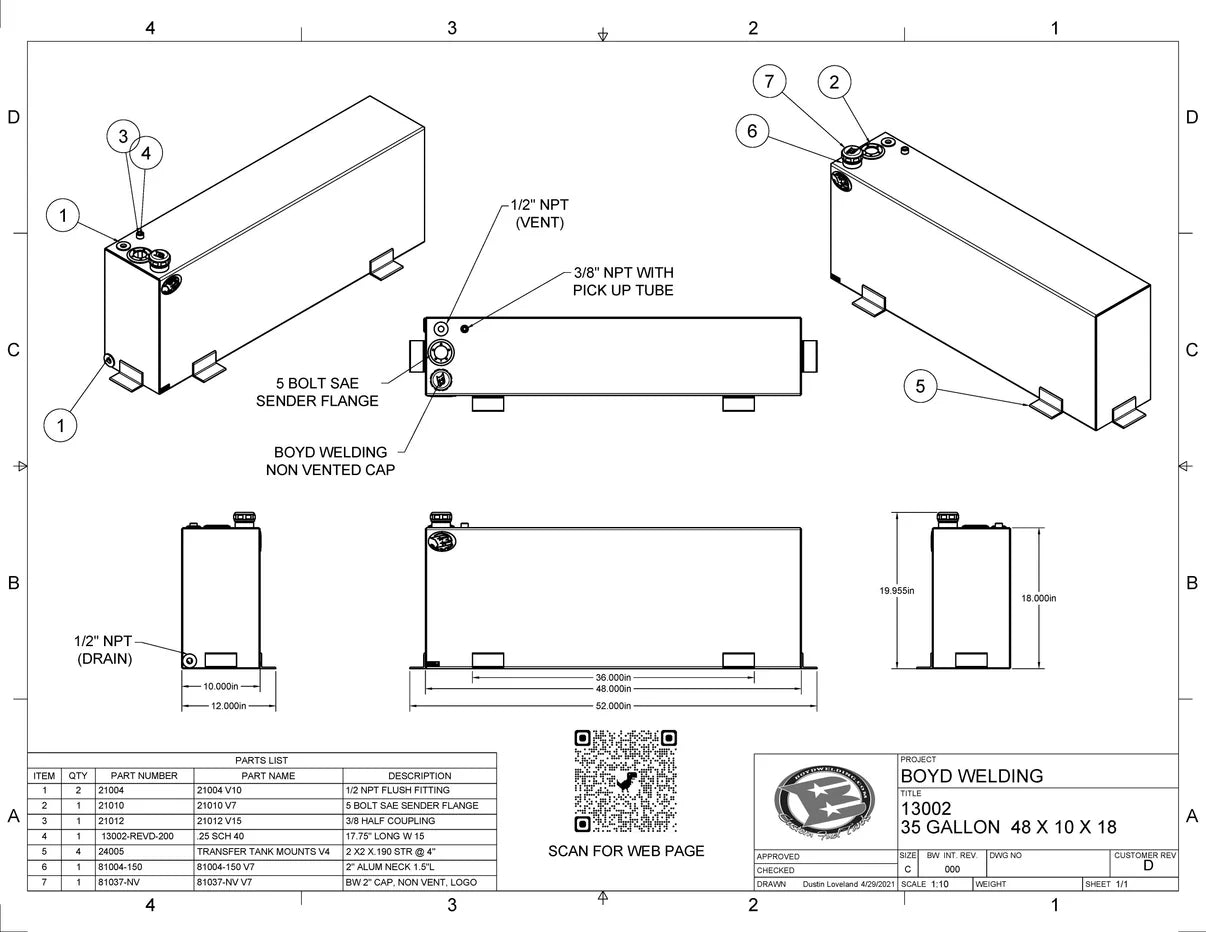

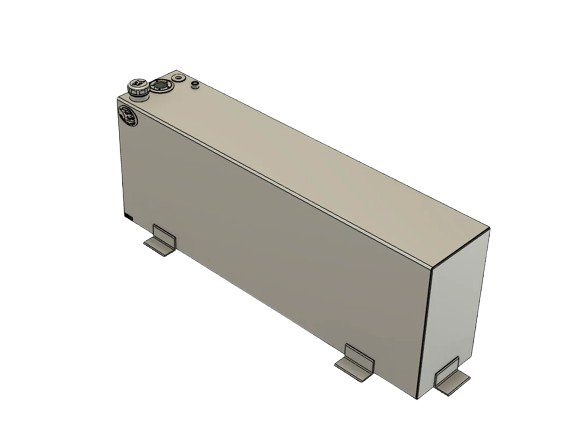

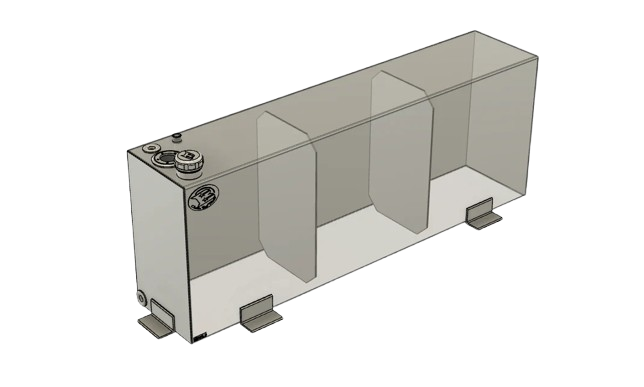

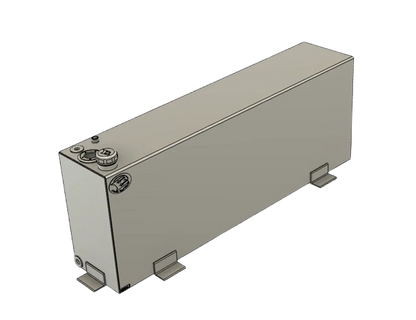

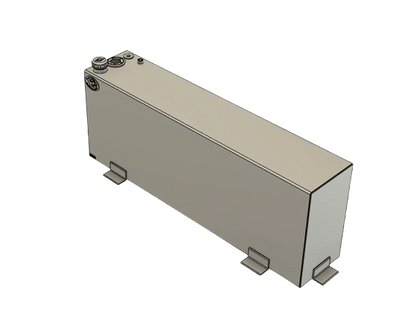

Tank Dimensions: 48 x 10 x 18 Tank Thickness: 1/8" Material Grade: 5052 Mill Aluminum Approx Weight: 50 lbs Tank Baffles:Yes (2)

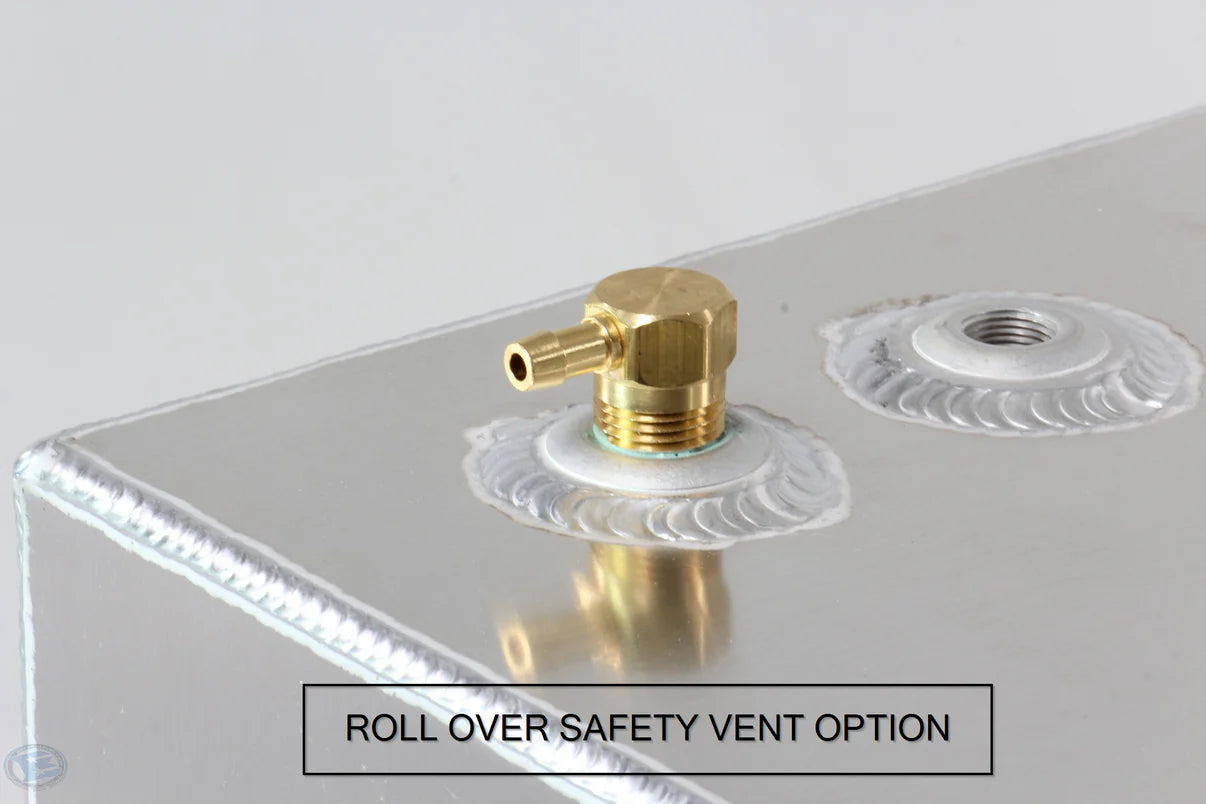

Fill Cap: Based On Selection Vent: 1/2" NPT Draw:3/8" NPT Pickup Tube Return: No Drain: Yes, 1/2" NPT Transfer Pump Fitting:No Sending Unit Flange: Yes Mounting Tabs: (4) 1.5 x 4" Long
This tank comes standard with 1 pickup tube installed. You can add ADDITIONAL pickup tubes via the option drop downs. If you don't need additional pickup tubes then you choose "no additional pickup tube"

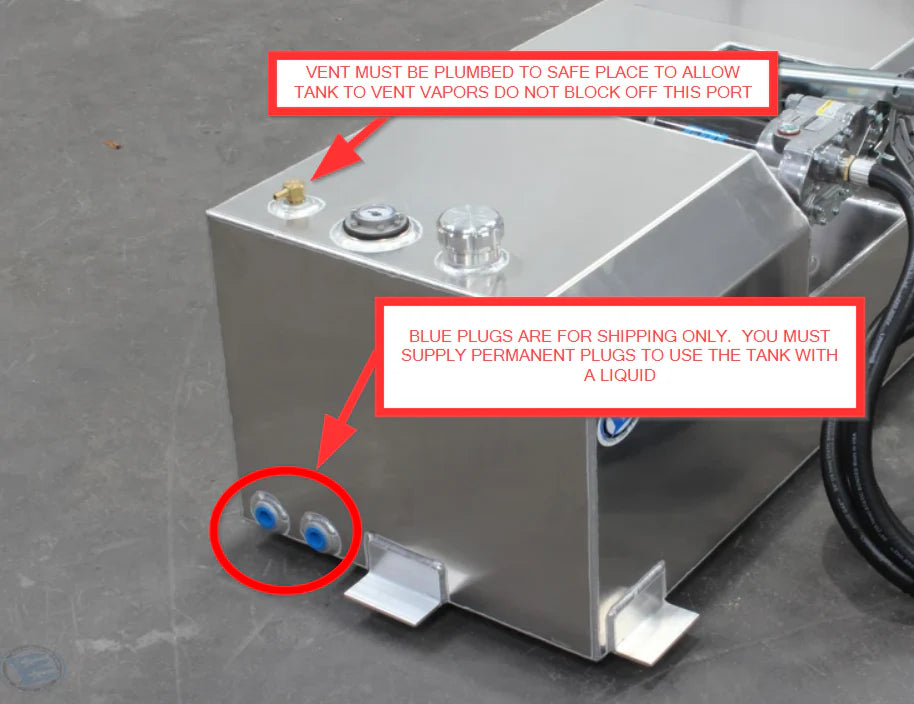

You will need to supply threaded fittings, plugs and hardware to complete your install based on your unique application.
