Electric Reel Wiring Harness (Stacked)

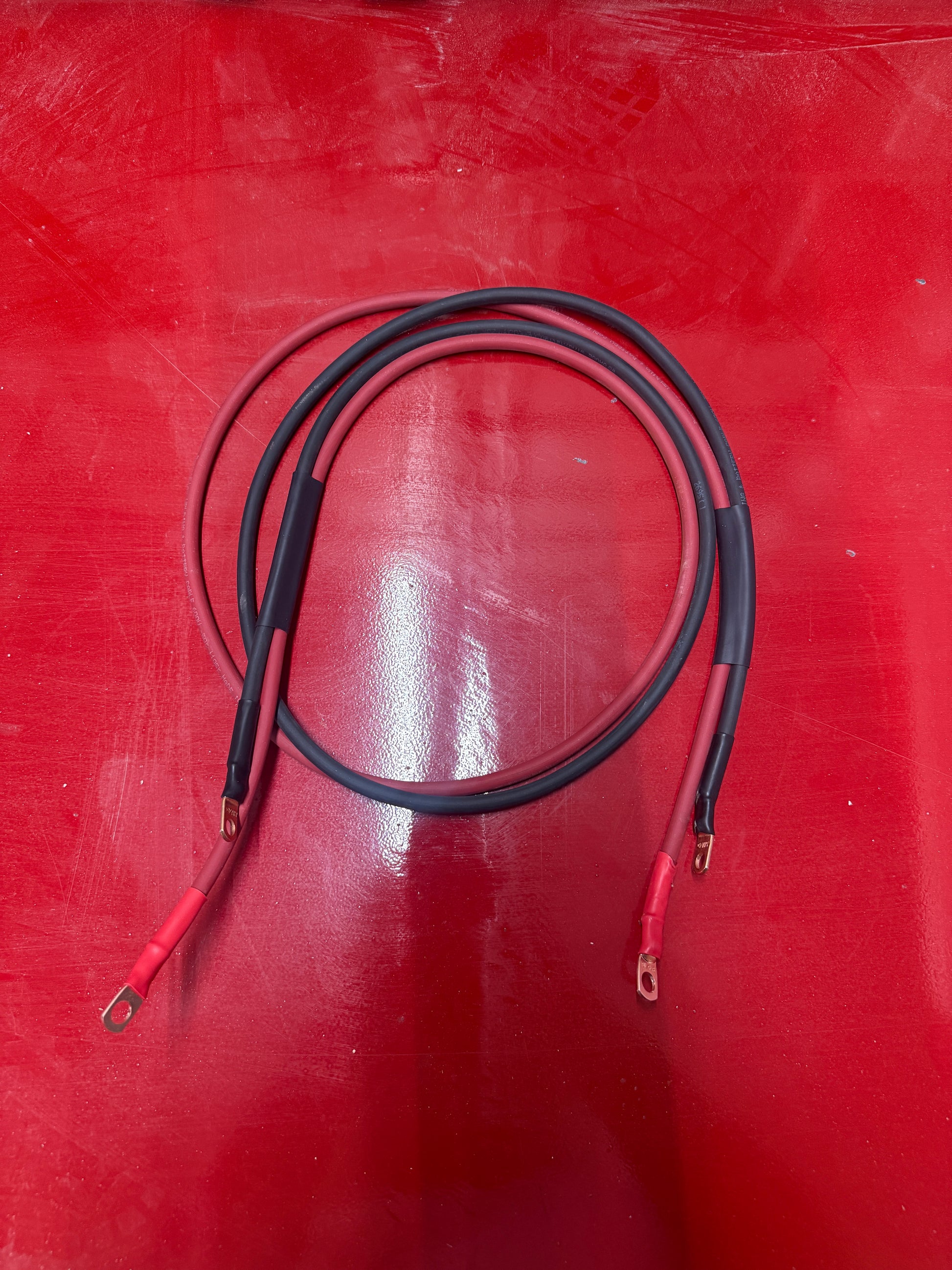

12V+ (Red) wire – 59" length with 5/16" lugs on both ends. Heat-shrinked connections for durability and a clean finish.

12V– (Black) wire – 54" length with 1/4" lugs on both ends. Heat-shrinked connections for durability and a clean finish.

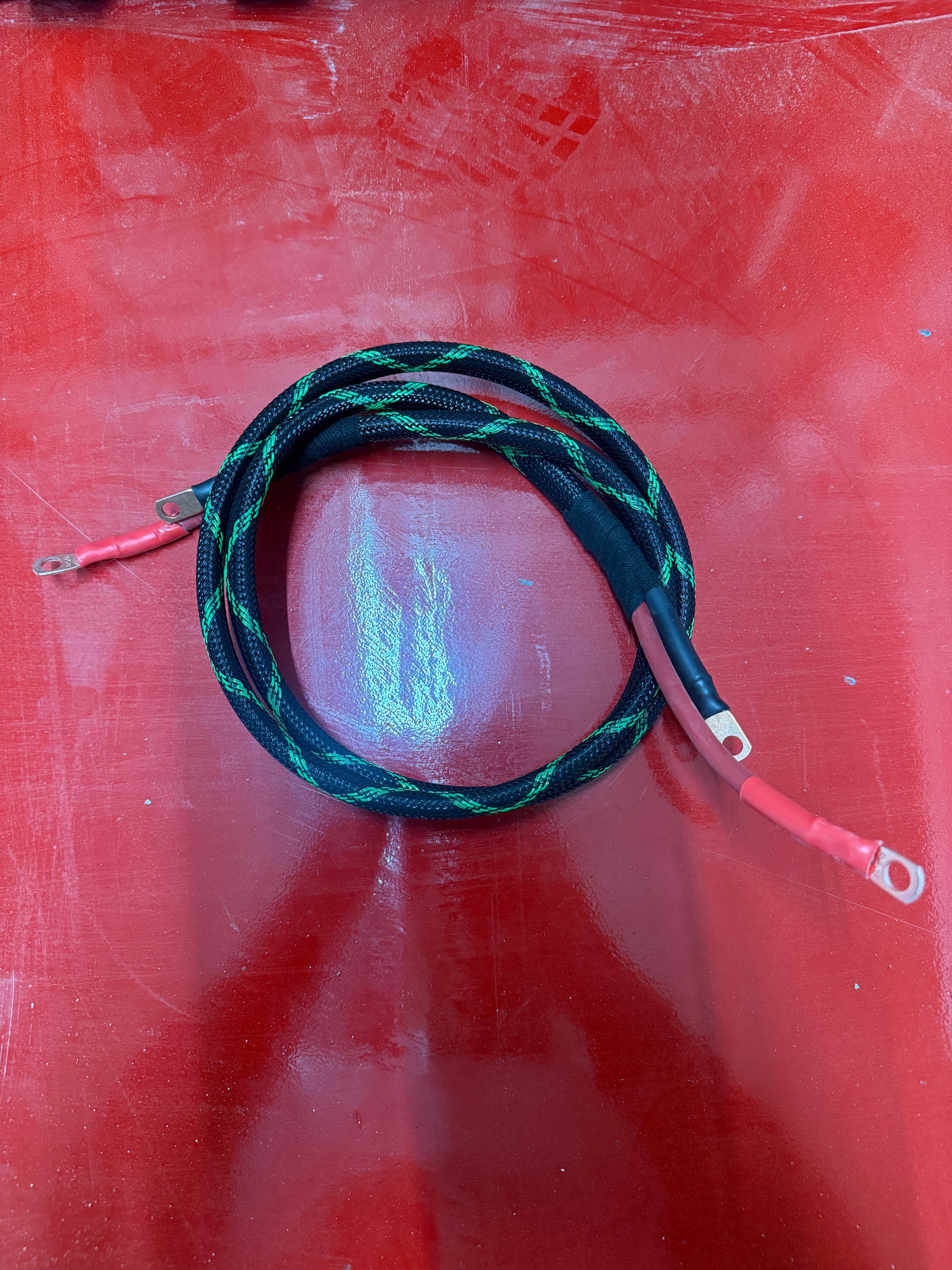

Optional wire sleeve available for added protection, durability, and a cleaner overall look.

Each harness supports up to 2 STACKED reels. These are cut for perfect fit on 12", 18", 22" Electric KINGS & TITAN reels only. May work on other brands...

For a 2-reel setup, you will need to run a harness directly to your battery bank. You can either build this yourself or purchase our Electric Reel Battery Harness, which is sold per foot so you can order the exact length needed for your setup.

For setups with 3 or more reels that are not all stacked, you will need one additional harness per 2 reels.
Example:
• 6 reels = 3 harnesses
• 8 reels = 4 harnesses

In stacked configurations, the bottom reel ties into the adjacent reels, and so on. The reels closest to the battery bank should be wired directly to the battery or circuit breaker.
