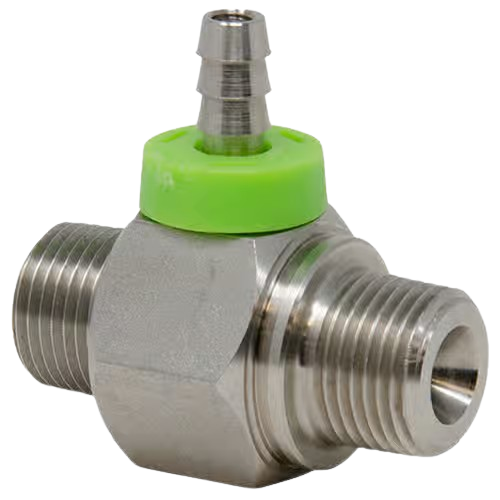

General Pump 100339LG Stainless Steel Chemical Injector

This injector was the winner of Busted or Trusted EP.1

Where we tested different draw ratings on various popular injectors. Producing a 1.2% final bleach draw rating. Here's the video link to check out:

https://youtu.be/8WmGttTx4mE?si=j8GqkutBunx_ikP4

The General Pump 100339LG Chemical Injector is designed specifically for car wash applications. This stainless steel chemical injector has a flow rate of 5-8 GPM, a maximum pressure rating of 5500 PSI, and a maximum liquid temperature of 190 F. It also features a light green cap on the stainless steel hose barb which indicates its .091" orifice.

Specifications:

• 3/8" NPT-M inlet
• 3/8" NPT-M discharge
• 1/4" stainless steel hose barb chemical port
• .091" orifice indicated by light green cap
• 5-8 GPM flow rate range
• 5500 PSI max pressure
• 190° Fahrenheit max temperature
• Fixed design
• Made in the U.S.A.
• Weight: .4 lbs.
