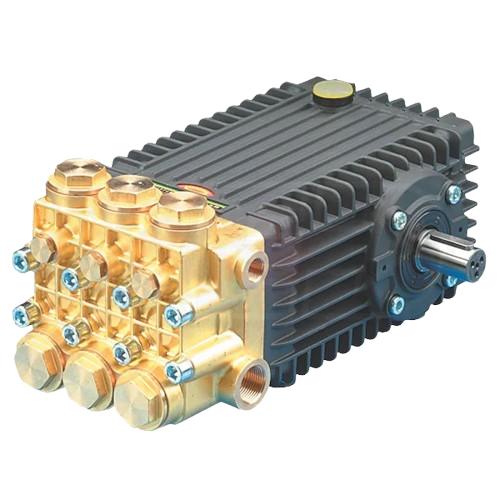

General Pump TSF2021 66 Series 3600 PSI 8.5 GPM Solid Shaft High Flow Triplex Pressure Washer Pump (Belt Drive)

General Pump TSF2021 66 Series 3600 PSI 8.5 GPM Solid Shaft High Flow Triplex Pressure Washer Pump (Belt Drive)

Regular price $1,100.00
Regular price $823.50 Sale price $1,100.00
Sale Sold out

General TSF2021 High Flow Triplex Plunger Pump | Summary

The General TSF2021 High Flow Triplex Plunger Pump is the gold-standard for high-performance pressure washing. Engineered to deliver exceptional results in demanding industrial and commercial applications, this pump provides up to 8.5 GPM at 3,600 PSI, ensuring the power and reliability you need for even the toughest jobs. Whether you're surface cleaning, sewer jetting, or tackling hydro excavation tasks, the TSF2021 is your go-to solution.

Designed with durability in mind, the TSF2021 features a forged brass manifold with a lifetime warranty, oversized roller bearings, and innovative seal and plunger designs that extend the life of the pump. Built to withstand harsh conditions, this pump ensures consistent performance across a wide range of industries.

Specification Details
Manufacturer General Pump
Series 66 Series
Flow Rate 8.5 GPM @ 1,750 RPM / 7.0 GPM @ 1,450 RPM
Max Discharge Pressure 3,600 PSI
Max Inlet Pressure 125 PSI
Max Fluid Temperature 165°F
Inlet Port Thread 3/4" - 14BSP-F
Discharge Port Thread 3/8" 19 BSP-F
Shaft Diameter .945 in. / 24mm
Pump Dimensions 14.94" x 9.78" x 6.99"
Plungers 99% Alumina-Ceramic
Crankcase Oil Capacity 40.6 oz (General Pump Series 100 Oil)
Warranty 5 Years + Lifetime Manifold Warranty
