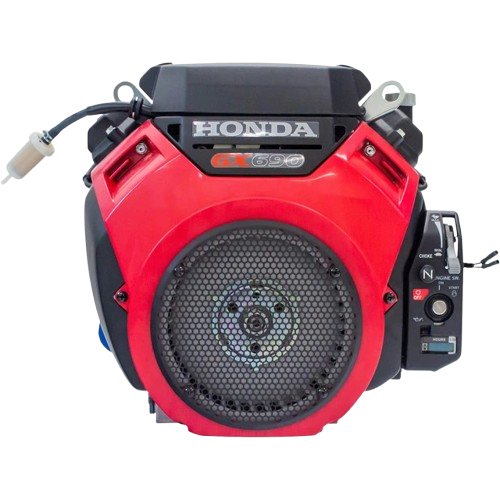

Honda GX690 Motor Only (NO MUFFLER)

The most reliable V-Twin motor on the market! Carb model and low maintenance. Keep a set of coils on hand, and let it eat!

GX690 Specs:

• Engine Type: Air-cooled 4-stroke OHV
• Shaft: 1-1/8" Keyed
• Bore x Stroke: 78 X 72 mm
• Displacement: 688 cm3
• Net Power Output: 22.1 hp (16.5 kW) @ 3,600 rpm
• Net Torque: 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Compression Ratio: 9.3:1
• Lamp/Charge coil options: 17A
• Carburetor: Horizontal type, two barrel butterfly valve, internal vent
• Ignition System: Digital CDI with variable ignition timing
• Starting System: Electric
• Lubrication System: Forced lubrication
• Governor System: Mechanical
• Air cleaner: Dual element

• Fuel: Unleaded 86 octane or higher
• Dry Weight: 96.8 lb (44 kg)
• Warranty: 3 year commercial warranty (limited to manufacturer defects)


FUEL EFFICIENT OPERATION:
-Fuel economy is similar to fuel injection, with the simplicity of carburetion
-Digital CDI ignition system with variable timing
-Includes a rev limiter to protect against damage from over-revving
-Two barrel inner-vent carburetor for more precise fuel metering
-Insert style rod bearings


HIGH OUTPUT PERFORMANCE:
-Hemispherical combustion chamber delivers rapid combustion
-9.3:1 compression ratio generates high power output without the need for premium fuel
-Forged steel crankshaft
-Pressure fed crankshaft bearings


SMOOTH PERFORMANCE:
-Integrated cylinder and head
-Racing inspired forged steel connecting rods EXCEPTIONALLY QUIET:
-High capacity 36 blade cooling fan
-Aluminum push rods with steel tips - lighter weight, lower vibration, and quieter operation


PROVEN RELIABILITY:
-High capacity pump facilitates consistent oil delivery -Dual cylindrical air filter
-Large diameter air intake for superior cooling
-Oil Alert

EASY TO USE AND MAINTAIN:
-Hour meter available
-Automotive-type spin-on oil filter

EASY STARTING:
-Automatic mechanical de-compression system
-Variable ignition timing

**Please note: Gas Tank and Muffler are sold separately. For muffler most common is VHLM6.**
