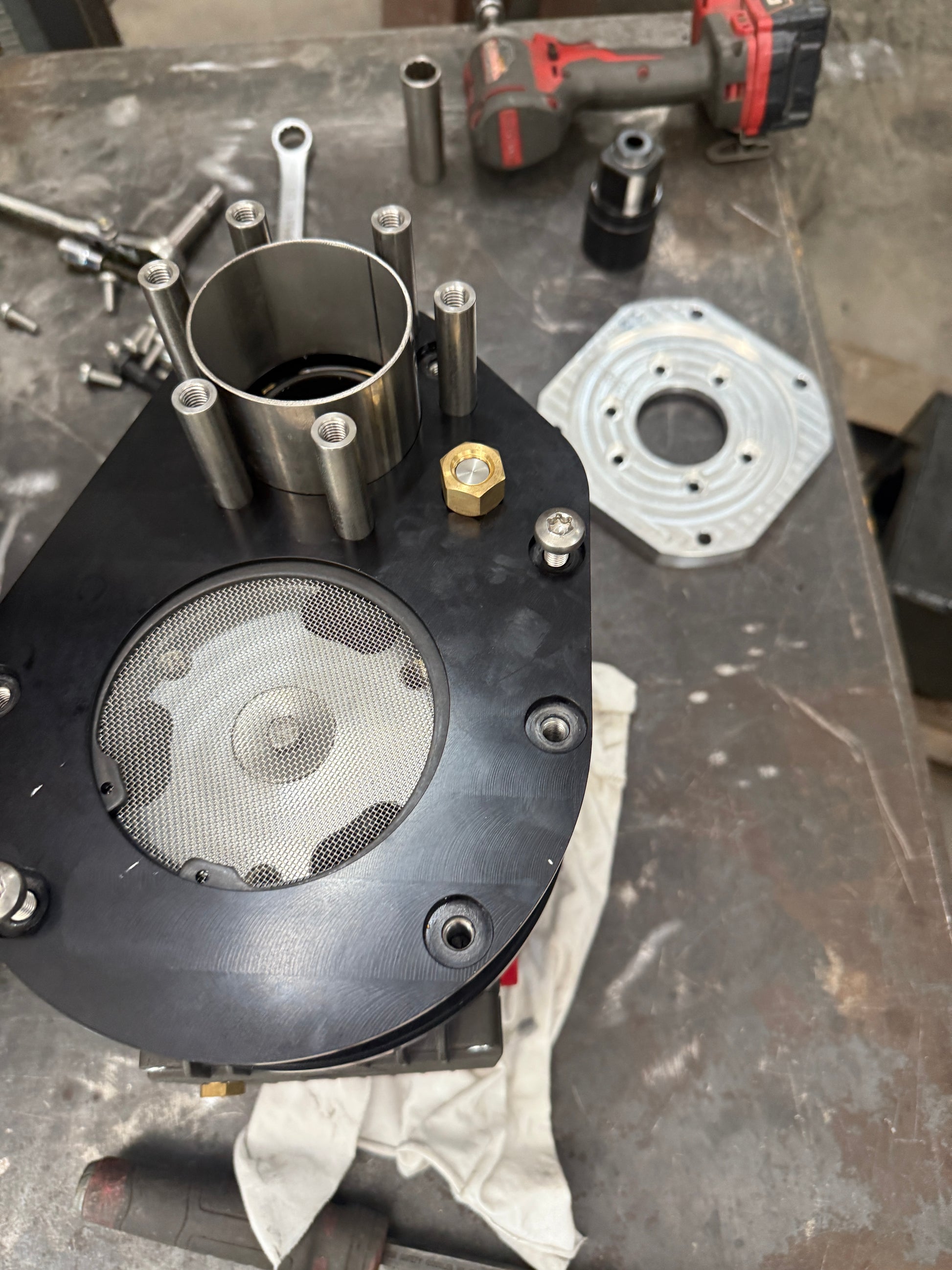

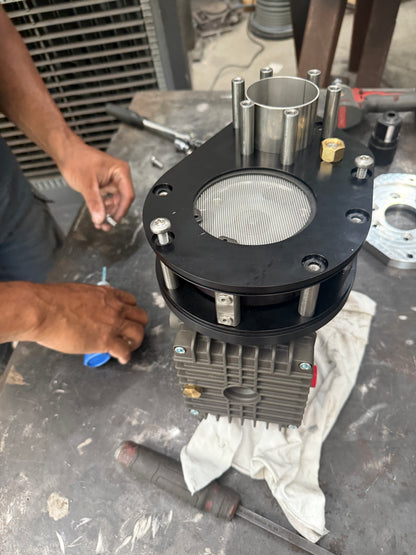

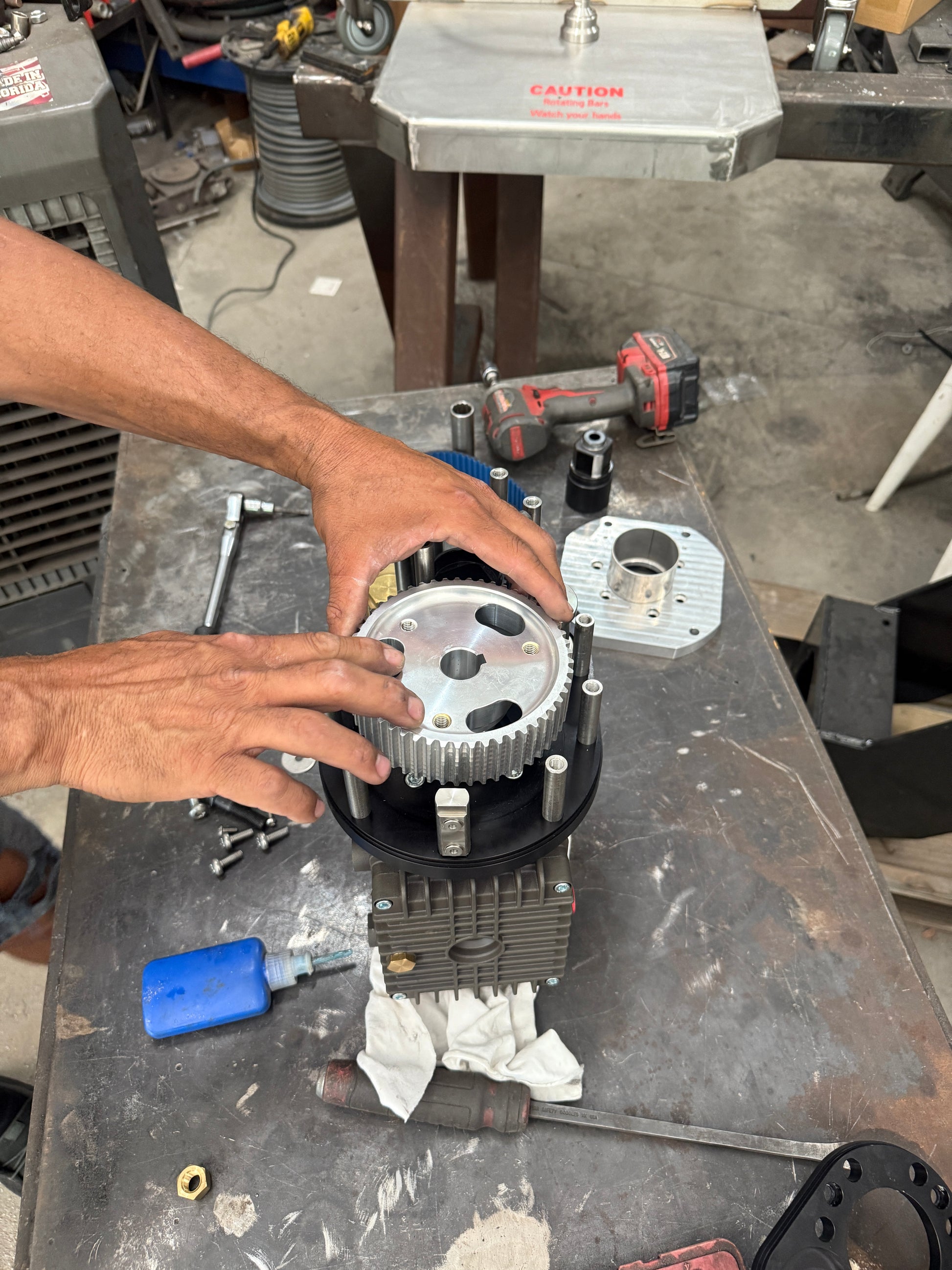

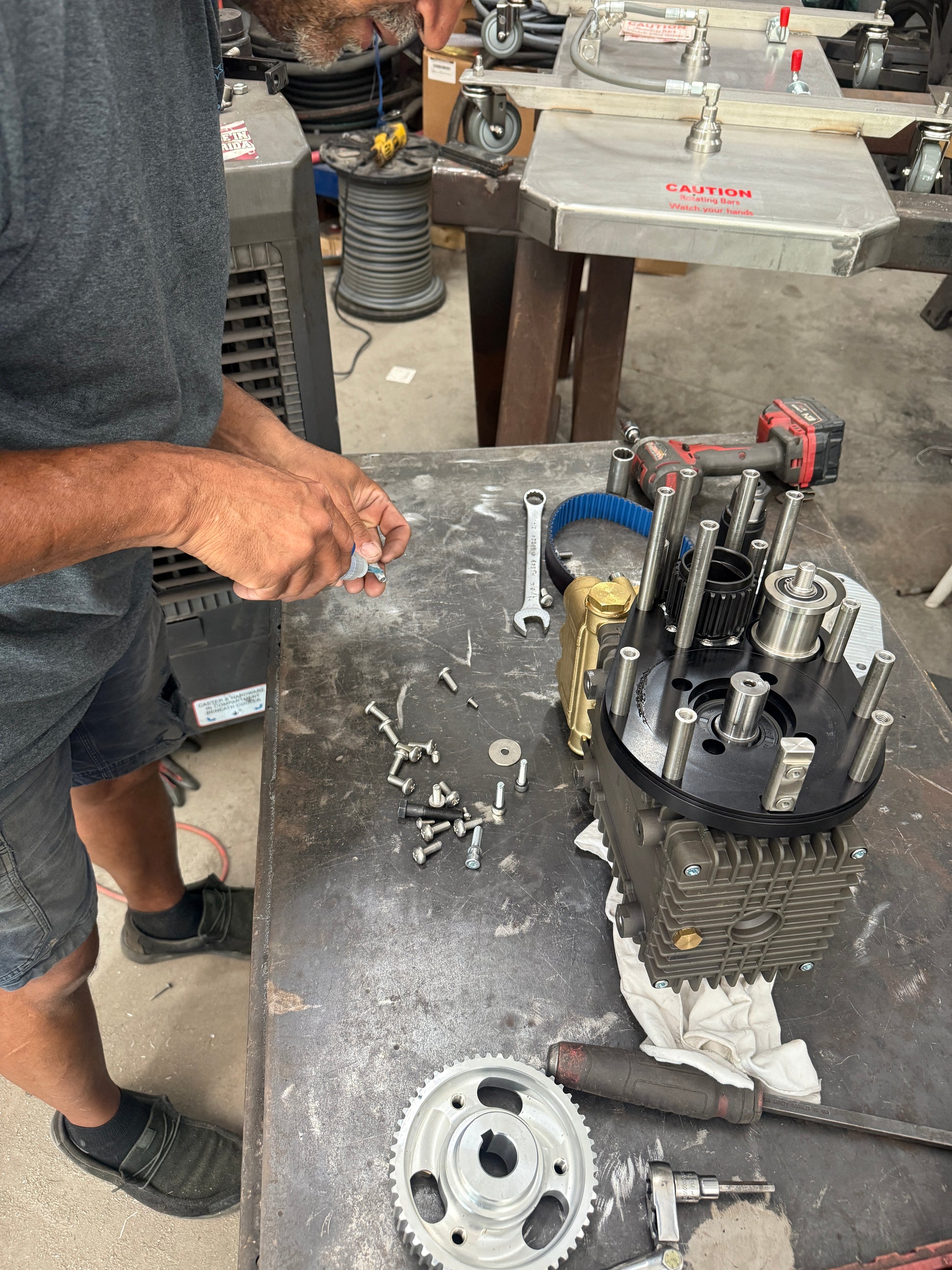

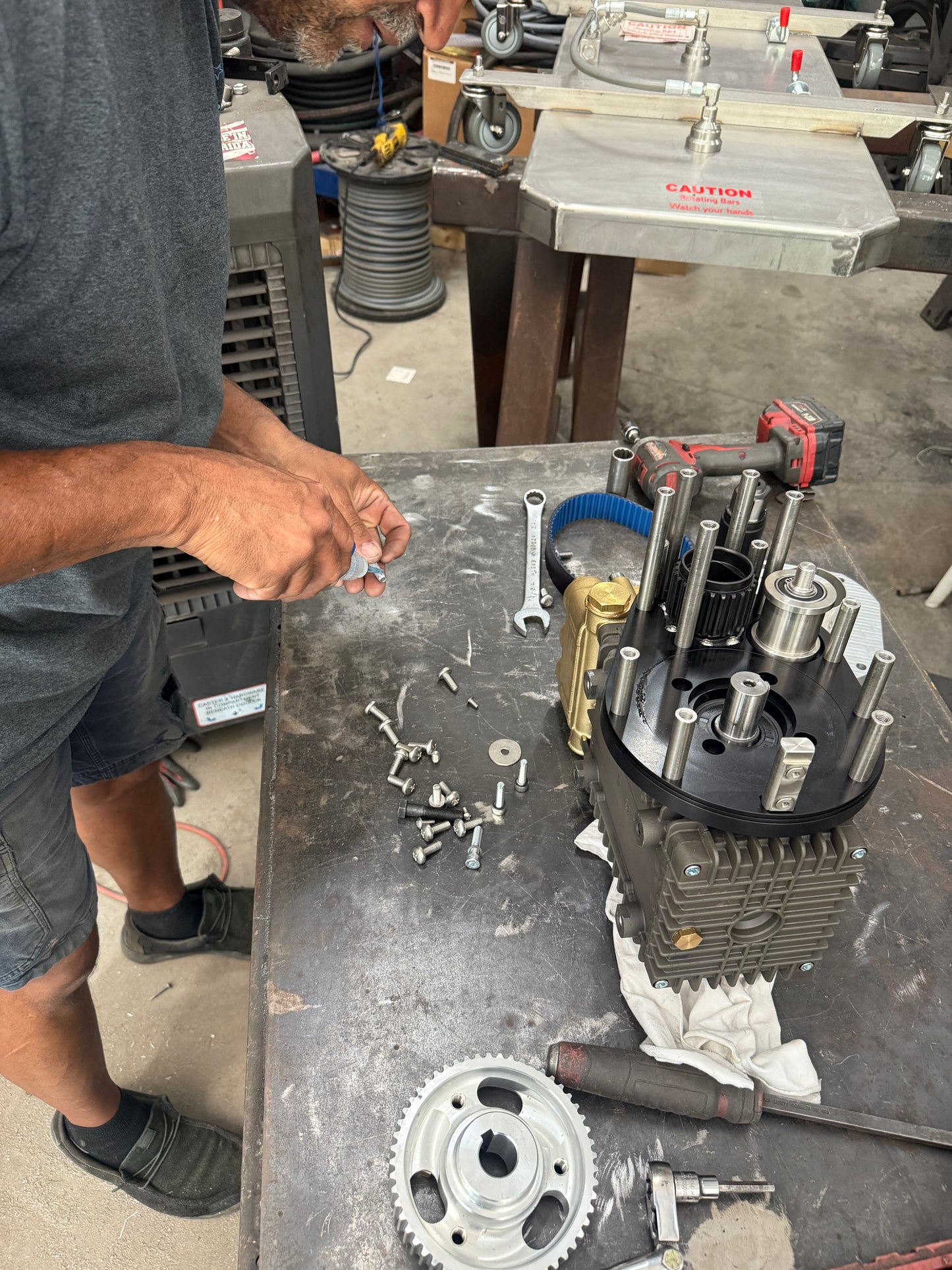

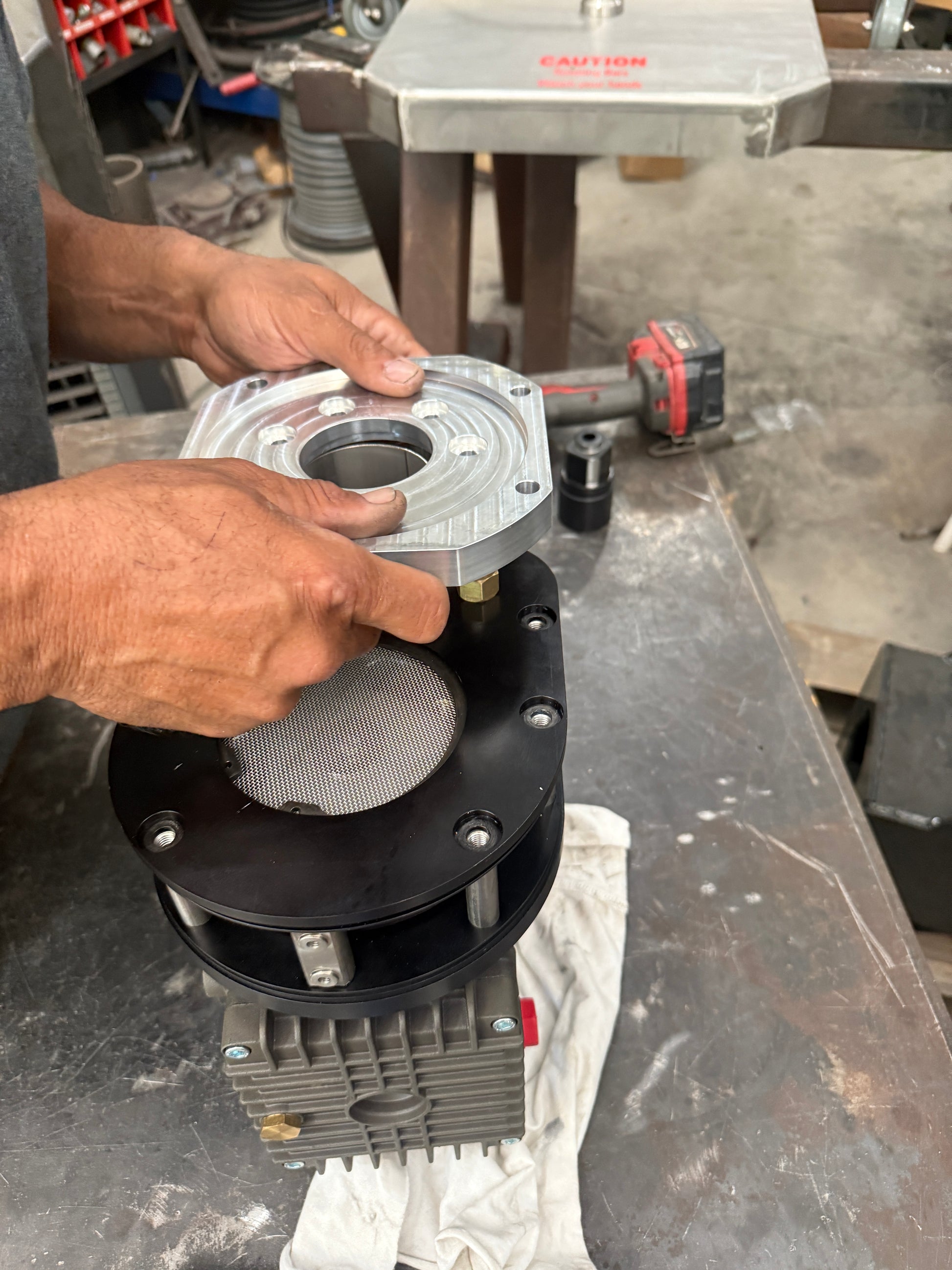

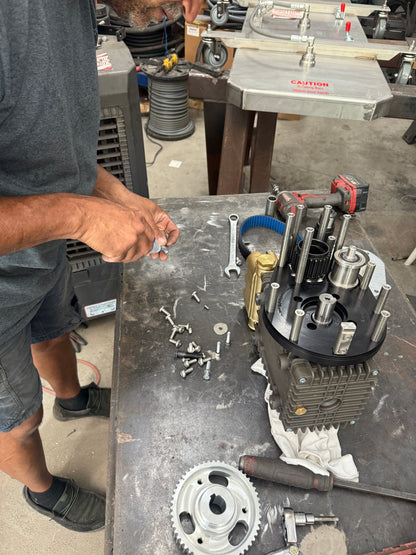

COG DRIVE ASSEMBLY – UP TO 55 HP
Drive assembly only. Pump and engine sold separately.
Built to handle serious horsepower.
Our cog drive assembly is designed for contractors who demand maximum reliability, consistent power transfer, and long service life. Featuring precision CNC-machined billet aluminum components, a heavy-duty keyed shaft, and an integrated idler pulley, this drive system is built to perform in the toughest commercial environments.
Compatible with Honda GX690, GX800, Kohler engines, and many other custom applications, this assembly can be used on systems ranging from 8 GPM up to 17 GPM.
Features
• Drive assembly only (pump and engine not included)
• Rated for up to 55 HP

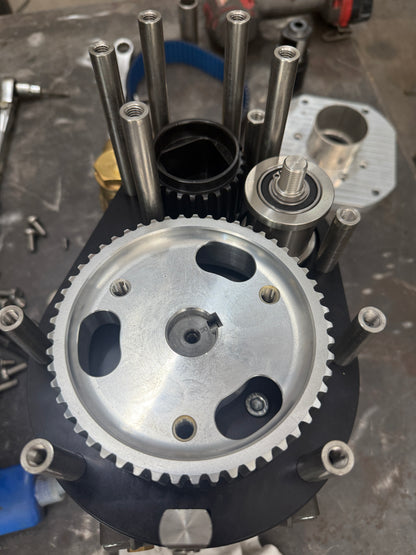

• Heavy-duty 1.5” wide cog belt
• 24 mm keyed shaft
• Integrated idler pulley for proper belt tension

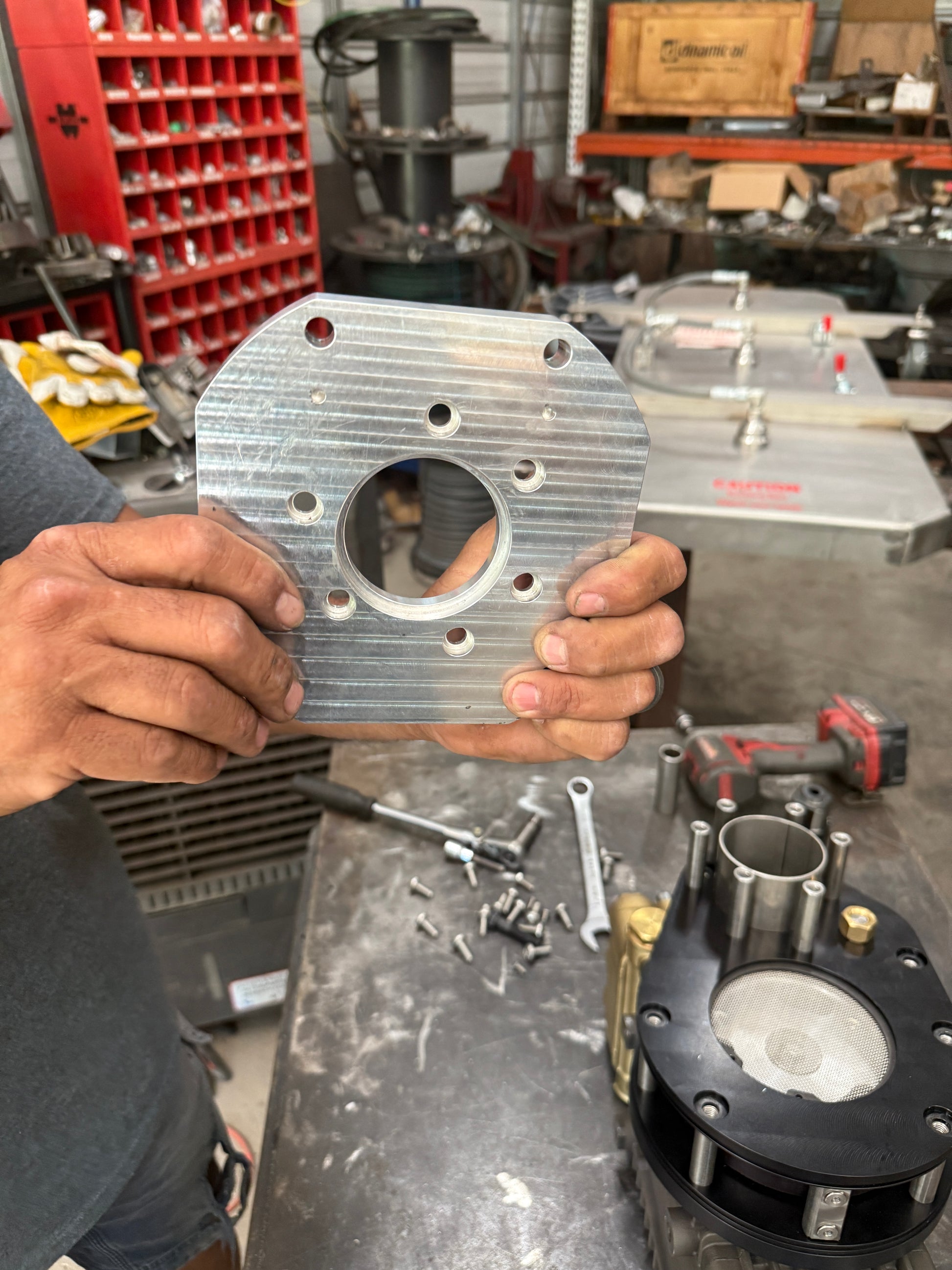

• Precision CNC-machined billet aluminum components
• Anodized aluminum construction
• Tight-tolerance manufacturing for maximum durability
• Designed for commercial and industrial use
Compatible With
• Honda GX690
• Honda GX800
• Kohler engines
• Various custom engine and pump combinations
Recommended Configuration
• VRT100 unloader
• Blue or Green spring
• 1/2” ports
• 1/2” bypass return
This setup provides excellent flow characteristics and outstanding performance on high-output pressure washer systems.
Applications
• 8 GPM systems
• 10 GPM systems
• 12 GPM systems
• 14 GPM systems
• 17 GPM commercial systems
Built to Last
Under normal operating conditions, the cog belt is designed for a typical service life of 1,000+ hours, delivering dependable performance with minimal maintenance.
Maximum power transfer.
Built for high-horsepower applications.
Engineered to last.
